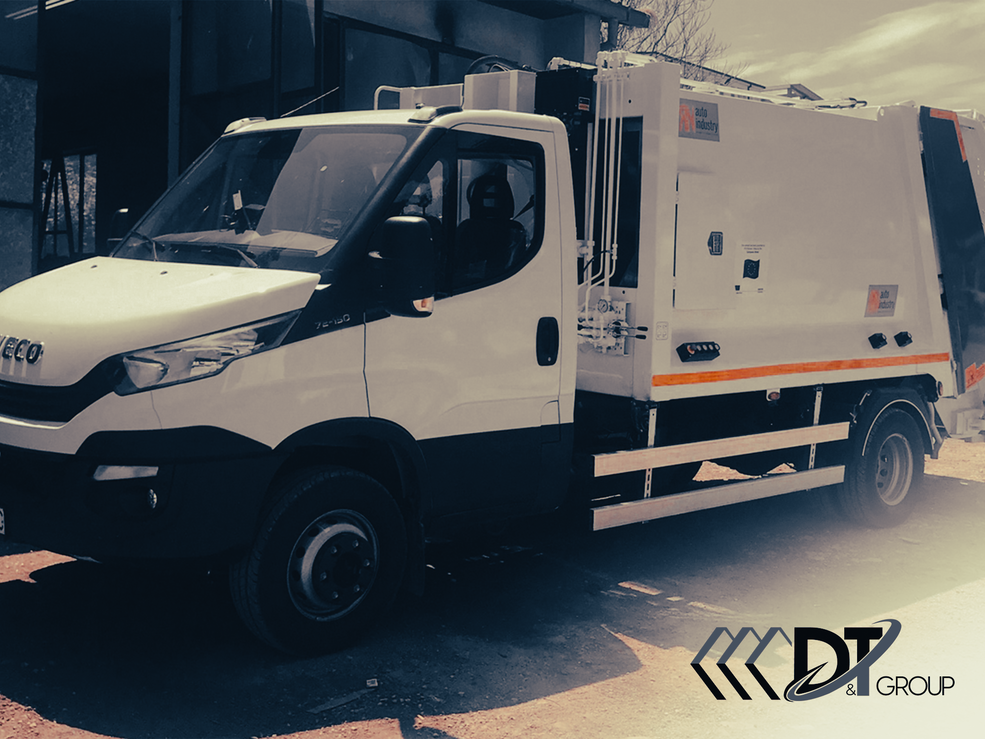

Rear Garbage Compactors
Products
/
Rear Garbage Compactors
Technical specs:
-
Capacity from 3 to 22 m3 garbage compactor
-
Material from steel st 52 to hardox
-
Without any U-profiles or any traverces on body side.
-
Compaction plate Single plate ,Area that get into contact with garbage friction,pressure from ST 52 steel quality.
-
Ejector(discharging) plate Tailgate (hopper)
-
The compaction ratio (volumetric) varies between 4:1 - 6:1 according to the characteristic of the garbage used in the area.
-
Hopper Capacity from 1 m3 to 2 m3
-
The tailgate raise is achieved by two double acting hydraulic cylinders
-
Safety Props
-
Devices Suitable to lift 1100liter (1.1m3) metal + 1100 liter (1.1m3) OSCHNER type + 1700 liter (1.7 m3)
-
120 – 240 – 360 - 1100litre plastic containers;
-
Plastic Containers teethes are mounted on the 1.1m3 lifter arms.
-
System can be operated electrically.
-
The system is controlled from the control box, which enables, start, stop, emergency button on both sides, continuous cycles, driver comm., and rescue activities.
-
Comm. Buzzer To warn or contact to the driver
-
Oil Tank Capacity
-
9 units of hydraulic cylinders
-
Rear Camera + monitr
